RaceBox Micro

RaceBox Micro

Regular price $135.00 USD
Regular price Sale price $135.00 USD
Sale Sold out
Version

Free shipping for all domestic orders

Unleash your full potential with the all-new RaceBox Micro, the ultimate GPS device for motocross enthusiasts demanding precision and performance. Its high-definition 25Hz GPS supports all of the best app features LITPro offers. Its compact and lightweight design provides numerous mounting options. The Micro is your go-to precision GPS device to elevate your LITPro experience to the next level.

Three Versions Offered:

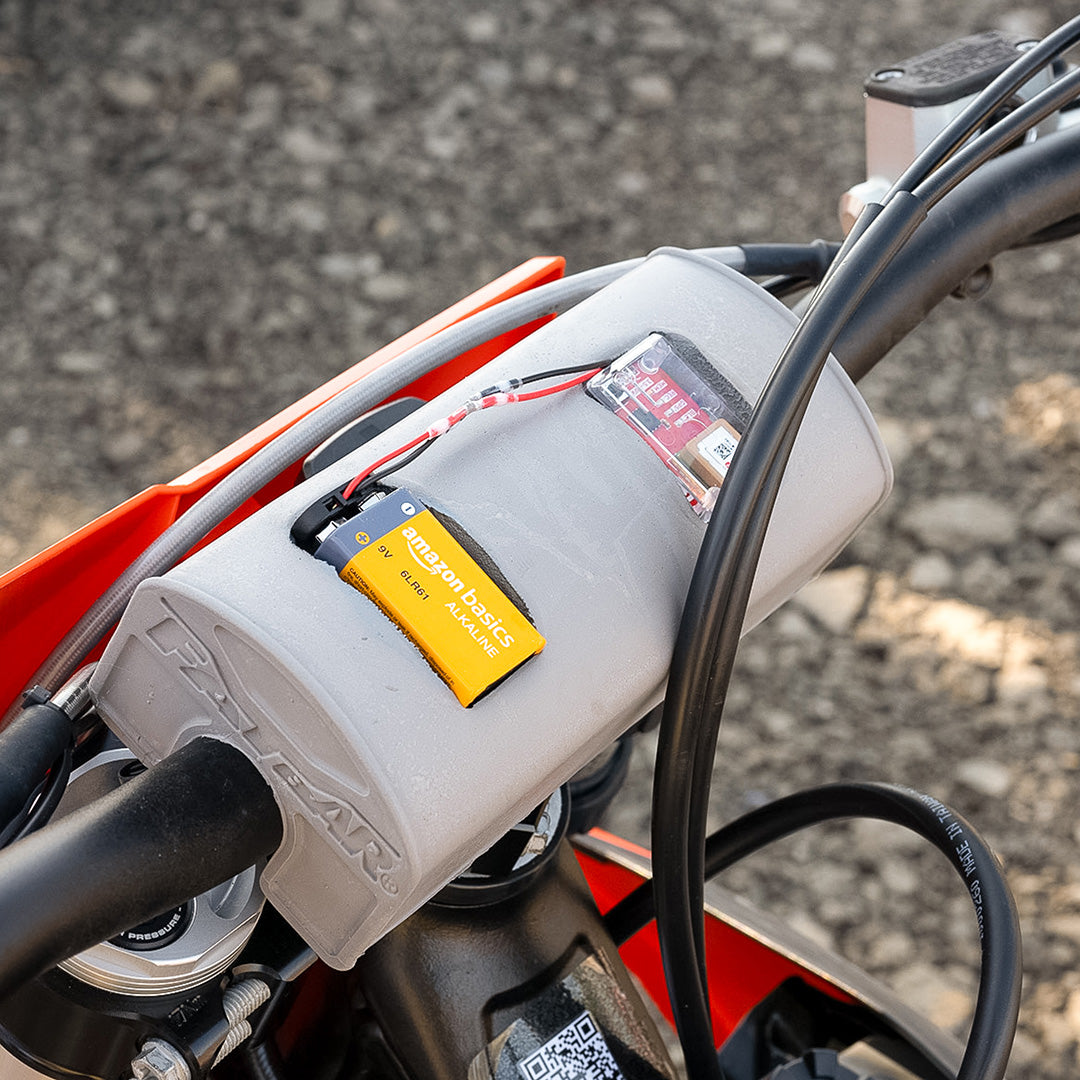

LITPro Modified with Water-Resistant Enclosure (Recommended Version)
No soldering or wiring is required, ready to use. Includes a 9V battery, connector, and mounting kit.

LITPro Modified
No soldering or wiring is required, ready to use. Includes a 9V battery, connector, and mounting kit.

Stock from RaceBox
Requires soldering/wiring directly to harness on bike or other power source. See the manufacturer's specifications for more detail.

High-Precision GNSS (GPS) - 25Hz
Simultaneous tracking of GPS, Glonass, Galileo, Beidou, SBAS, QZSS

Compact Enclosure and Lightweight
0.98x1.57x0.47 inch, .5 oz
Allows for numerous mounting options

Compatible with iOS and Android Smartphones
Bluetooth 5.2

Important Note: Only the LITPro Modified with Water Resistant Enclosure variant is water resistant
For other variations, customers are responsible for mounting the Micro where it is protected from water, mud and dirt. There is no warranty on Micros with water or physical damage.

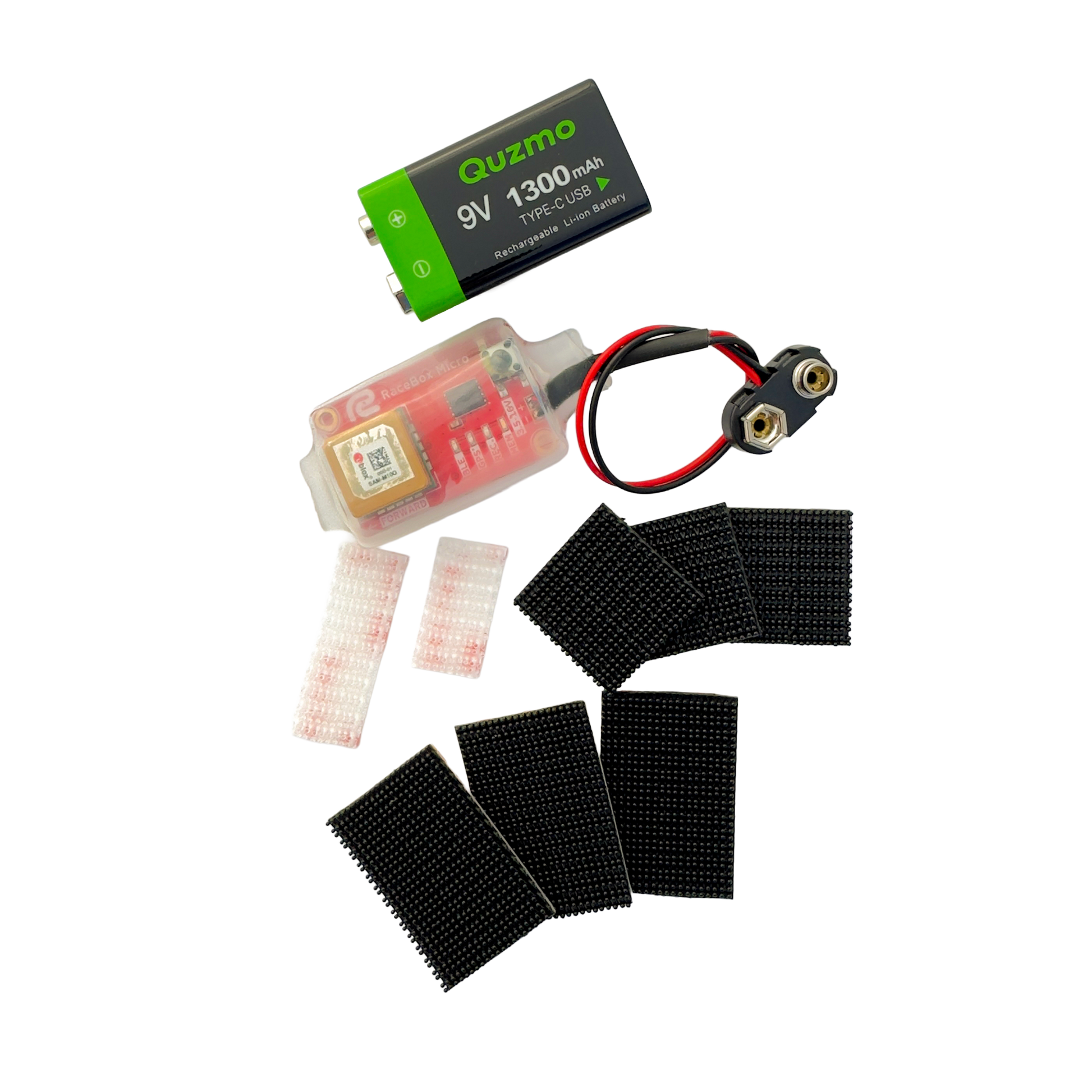

What's included

  • RaceBox Micro
  • 9V Battery and connector (LITPRO modified versions only)
  • Mounting kit (LITPRO modified versions only)
  • Water Resistant Enclosure (LITPro modified with Water Resistant Enclosure version only)
  • Soft carry bag
  • Quick-start guide and mounting guidance

Technical specs

  • Weight: 15 grams (0.5 oz.)
  • Dimensions: 25x40x12mm (0.98x1.57x0.47 inch)
  • BLE: 5.2, certified down to 4.2. Up to 20 meters range
  • Input voltage range: 3.5 to 16V. Reverse polarity protection. Soft undervoltage lockout.
  • Current consumption: 1mA in standby (standalone recording disabled, no BLE client connected), 25mA average when active
  • GNSS receiver: up to 25Hz, supporting GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS
  • Accelerometer: 1kHz internal sampling rate with +/- 8g scale and 0.001g sensitivity
  • Gyroscope: 1kHz sampling rate with +/- 320dps scale and 0.02 dps sensitivity
  • Environmental compatibility: -20 to 70°C (-4 to 158°F)
  • Storage: 130 min @ 25Hz, 325 min @ 10Hz
  • Connector: standard 2-pin 0.1" female header (stock version)
Compare Micro with other LITPro compatible GPS devices Compare app feature support by device type

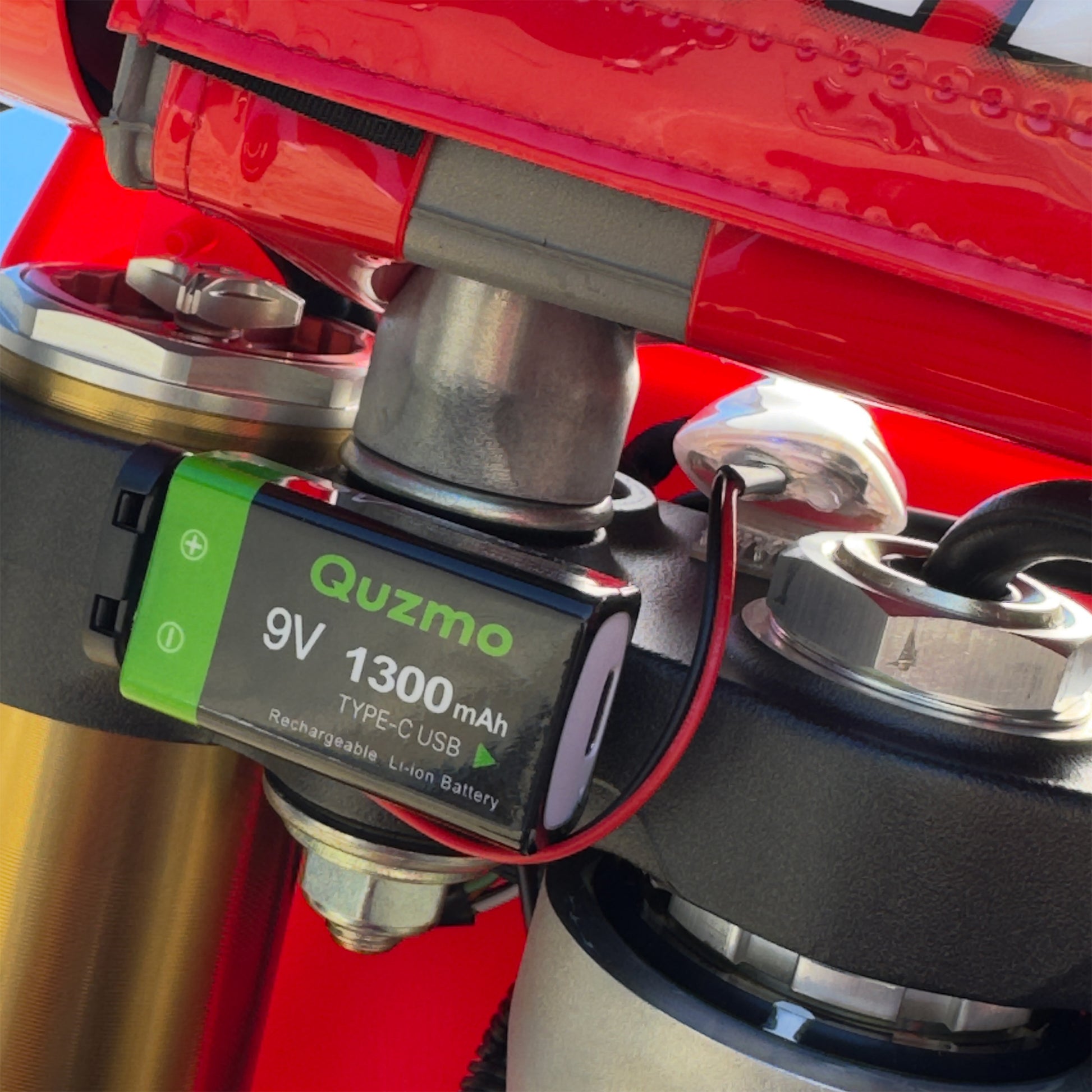

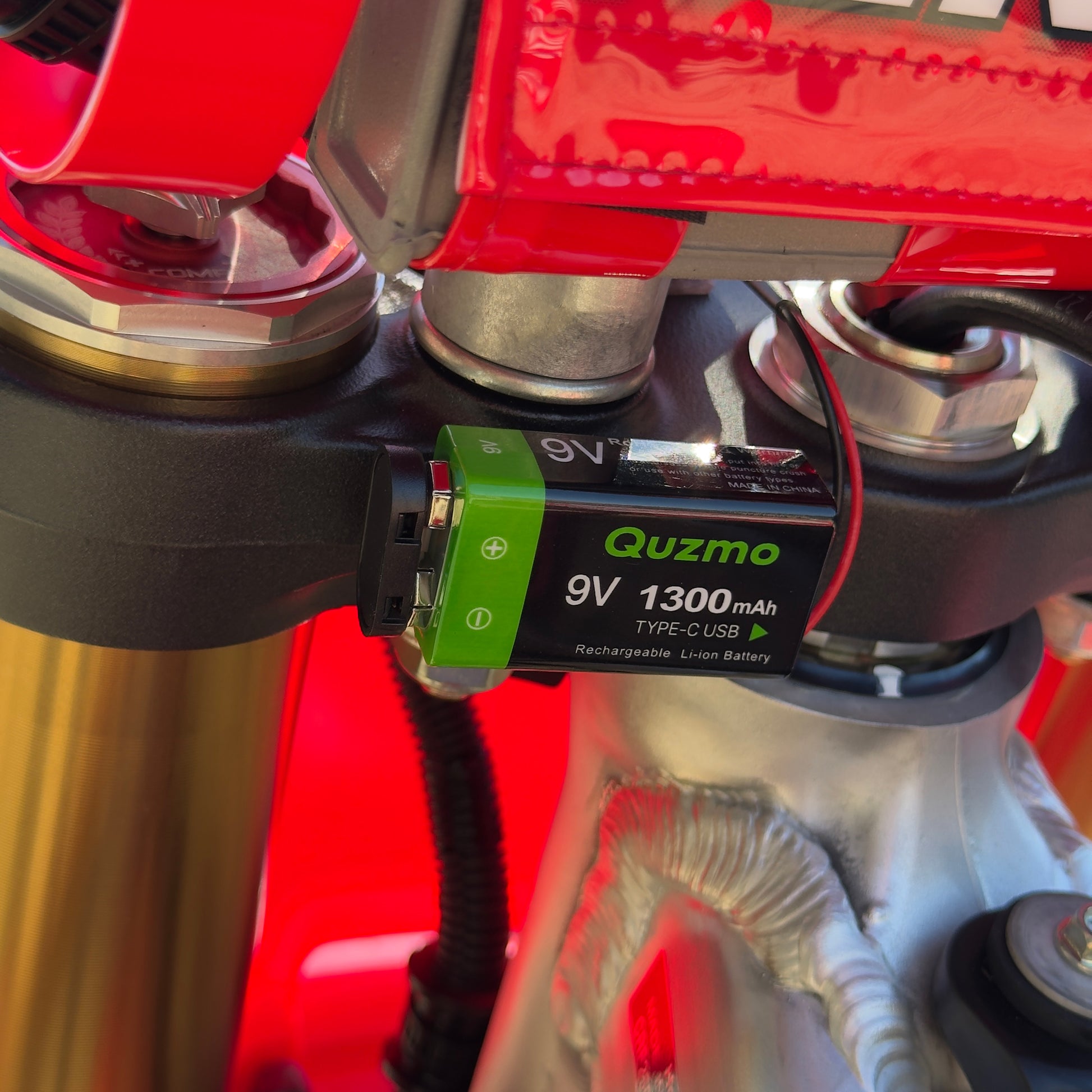

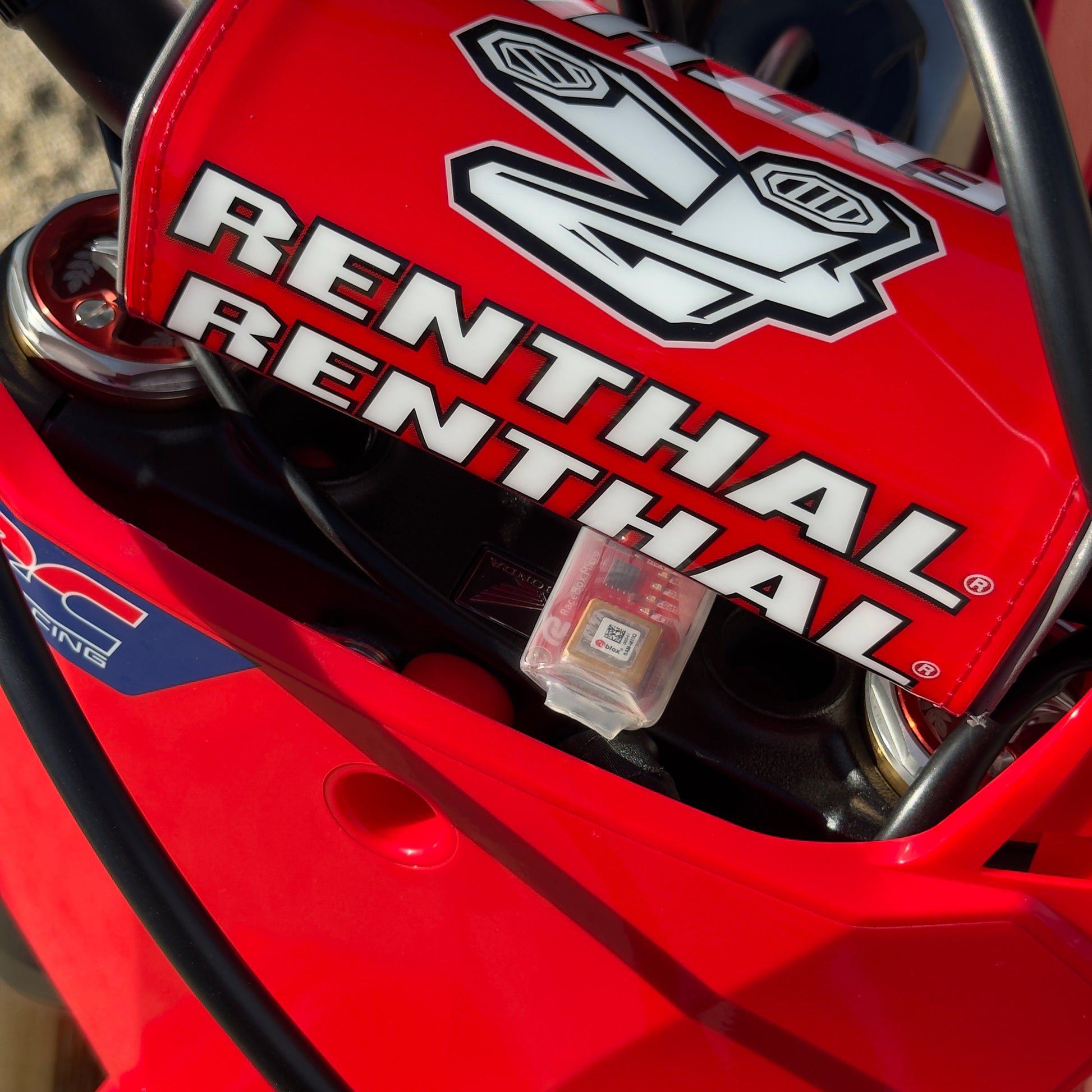

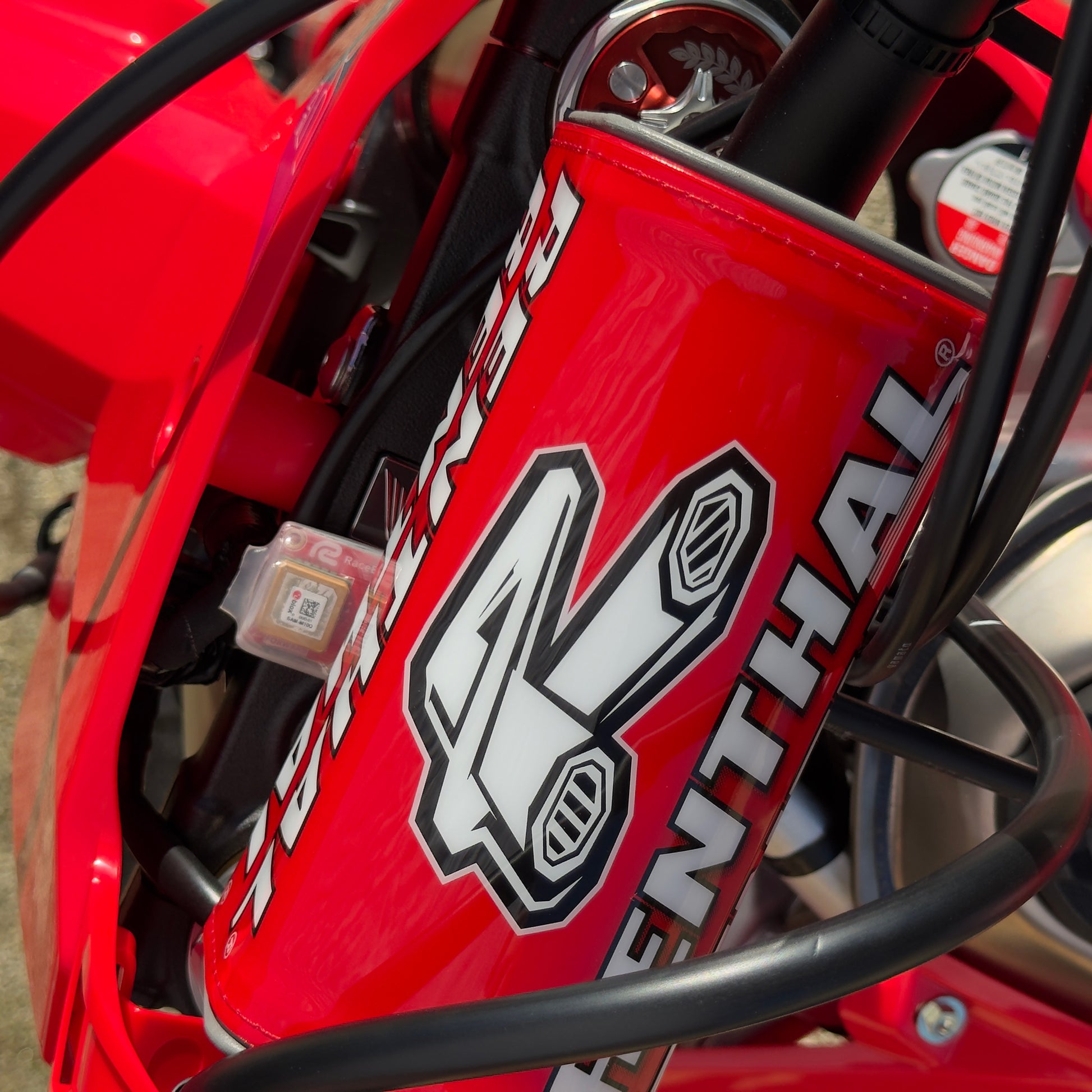

Getting Started Guide & Mounting Instructions

See how the Micro performs against the Mini S in our GPS Shootout.
