Mini S + Mounting Kit

Mini S + Mounting Kit

Regular price $249.00 USD
Regular price $299.00 USD Sale price $249.00 USD
Sale Sold out

Bundle Includes:

  • RaceBox Mini S Precision GPS Receiver (iOS & Android Compatible)
  • RaceBox Mini S Mounting Kit

Highest GPS accuracy for motocross and MTB

The RaceBox Mini S is a state-of-the-art GPS recording device. It features a 25Hz GPS Module that simultaneously tracks GPS, Glonass, Galileo, Beidou. This level of accuracy unlocks the best that LITPro has to offer. You'll also get airtime analytics, fast sync times, and its compatible with iOS and Android. The Mini S is also shock and splash resistant, making it durable for use in motocross and MTB environments.

Technical Specifications:

  • Weight: 106 grams (3.7 oz.)
  • BLE: 5.2, certified down to 4.2. Up to 20 meters range
  • Battery: integrated 1100 mAh LiPo
  • Recommended charger: 0.5A USB Type-A. Most modern smartphone chargers should work
  • Charging port: USB Type-C
  • Charging time: less than 3 hours to 100% charged
  • Usage on battery: over 20 hours active, up to one year standby

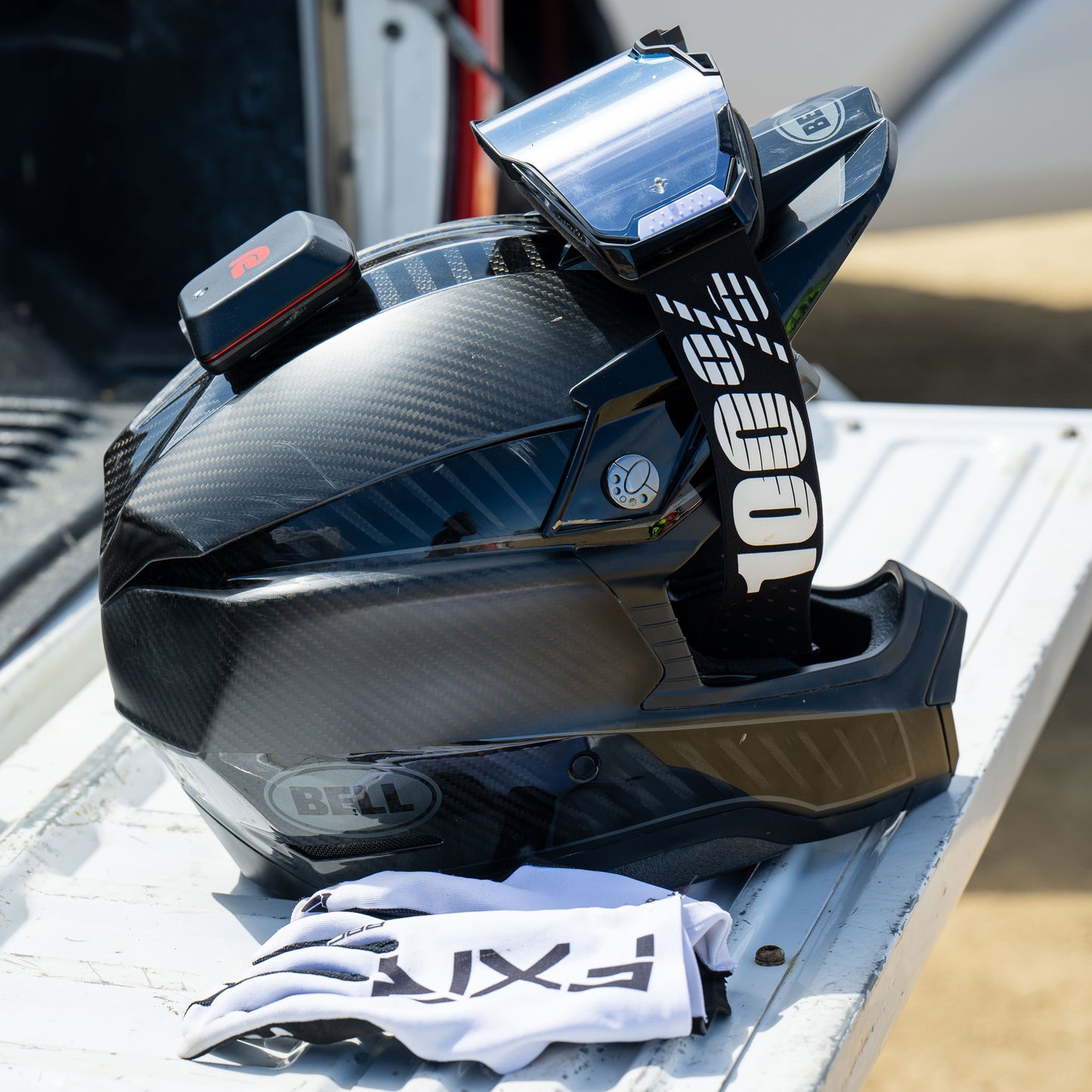

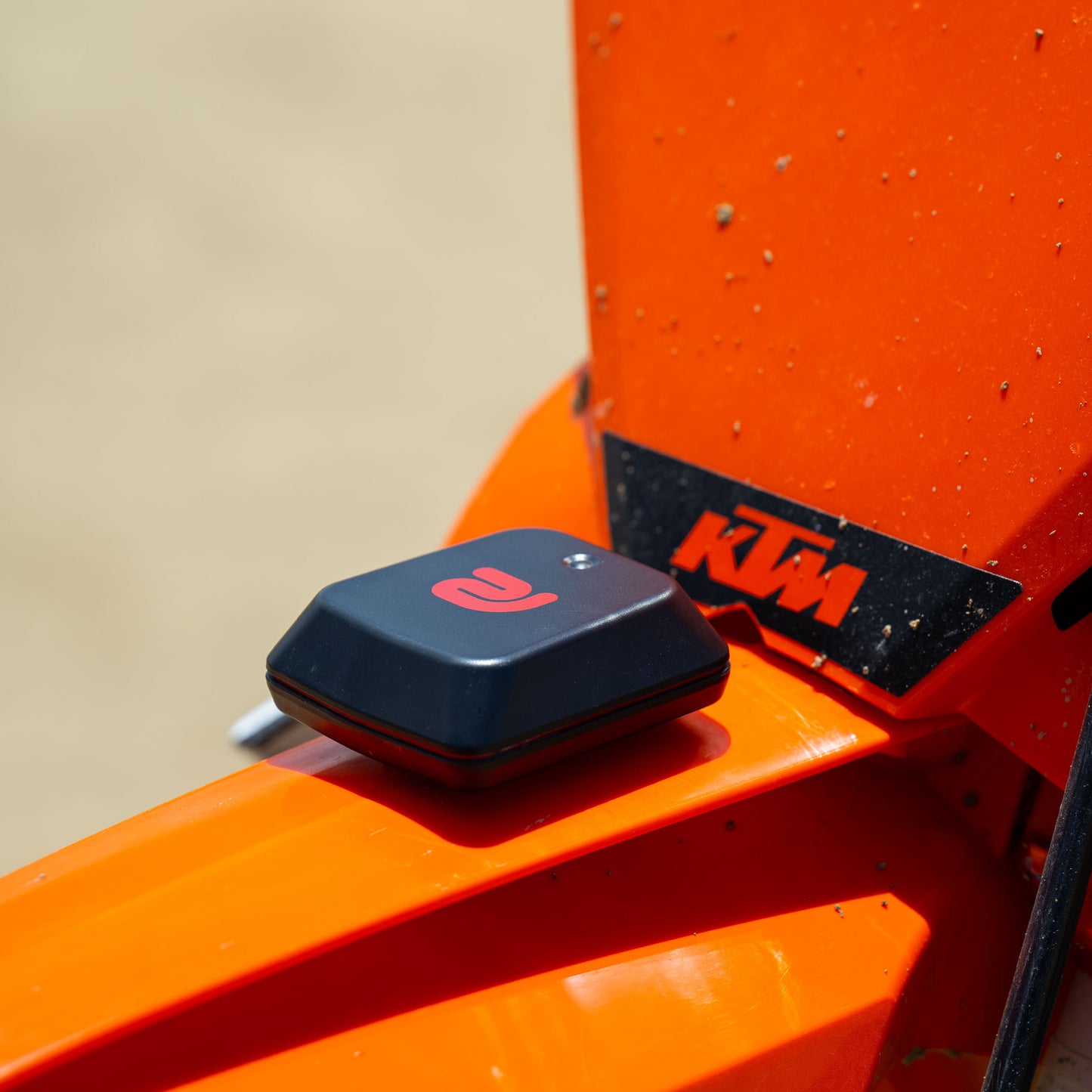

  • Mounting compatibility: Includes LITPro approved 1" 3M velcro mounting strips (white for the GPS device and black for your helmet or fender) Also includes Integrated magnets and 1/4"-20UNC thread. Accessories include grip pad and hook'n'loop self-adhesive tape
  • GPS receiver: 25Hz GPS, GLONASS, Galileo, BeiDou and SBAS, -167dBm sensitivity with built-in 20dB gain antenna
  • Accelerometer: 1kHz internal sampling rate with +/- 8g scale and 0.001g sensitivity
  • Gyroscope: 1kHz sampling rate with +/- 320dps scale and 0.02 dps sensitivity
  • Environmental compatibility: -20 to 70°C (-4 to 158°F), splash resistant. Package includes optional dust cover for the charging port.
  • Storage (Mini S only): 130 min @ 25Hz, 325 min @ 10Hz

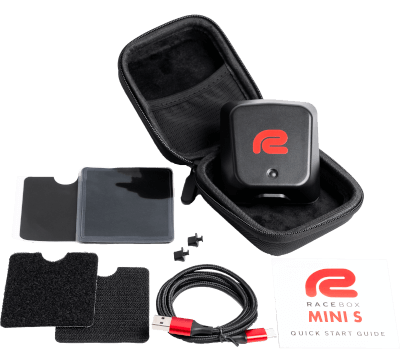

What's included in the box:

  • RaceBox Mini S
  • Hardshell carry case
  • USB-C to USB-A charging cable
  • USB-C Water/Dust covers for extra protection
  • Hook'n'loop self-adhesive tape
  • Scratch-protect self-adhesive tape
  • High-grip temperature-resistant silicone pad
  • Quick-start guide

A wall adapter or car charger is NOT included in the box. Feel free to use any USB 2A charger.

The Mini S also has four strong built-in magnets and a 1/4"-20 UNC threaded insert for additional mounting options.
