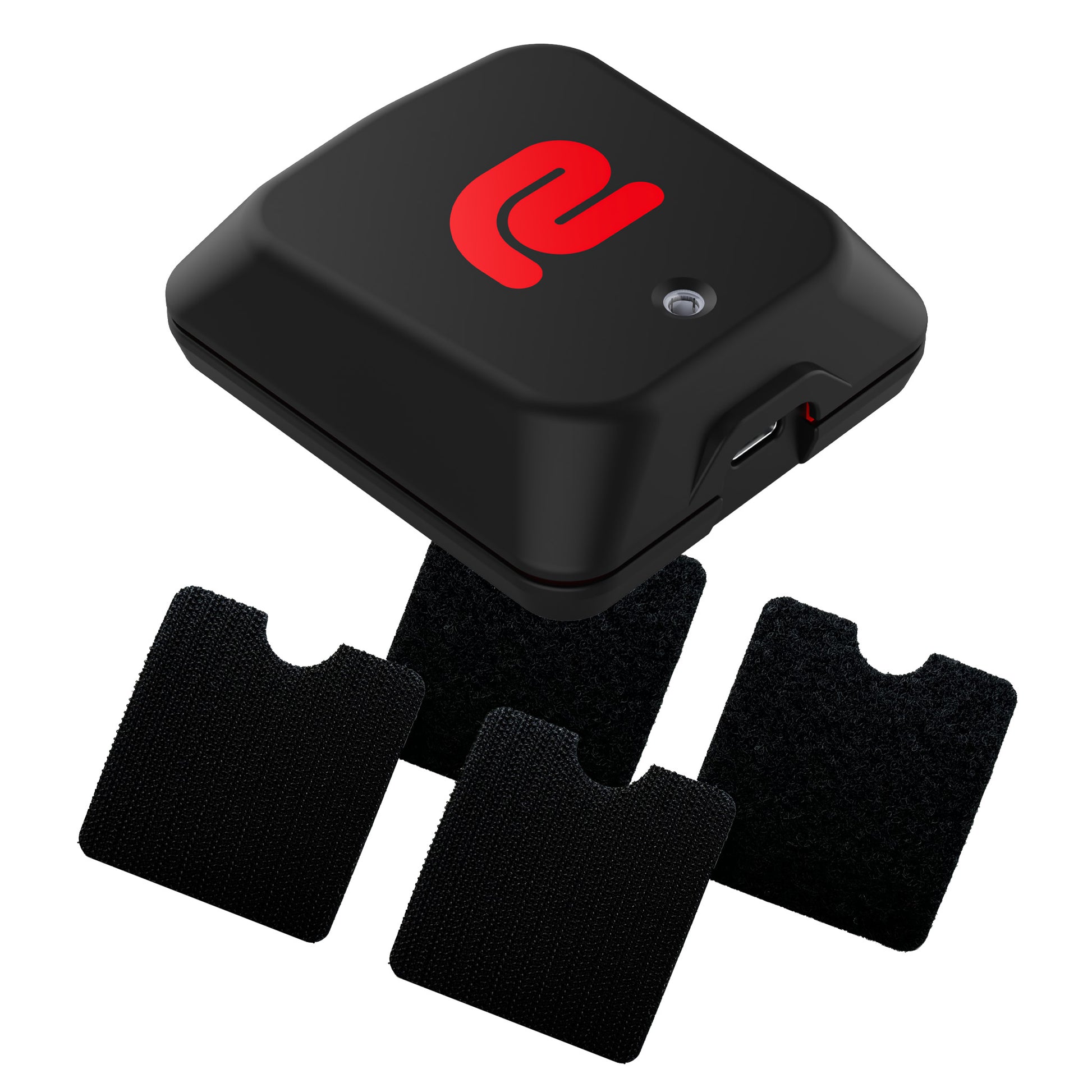

RaceBox Mini S + Extra Mounting Kits
RaceBox Mini S + Extra Mounting Kits

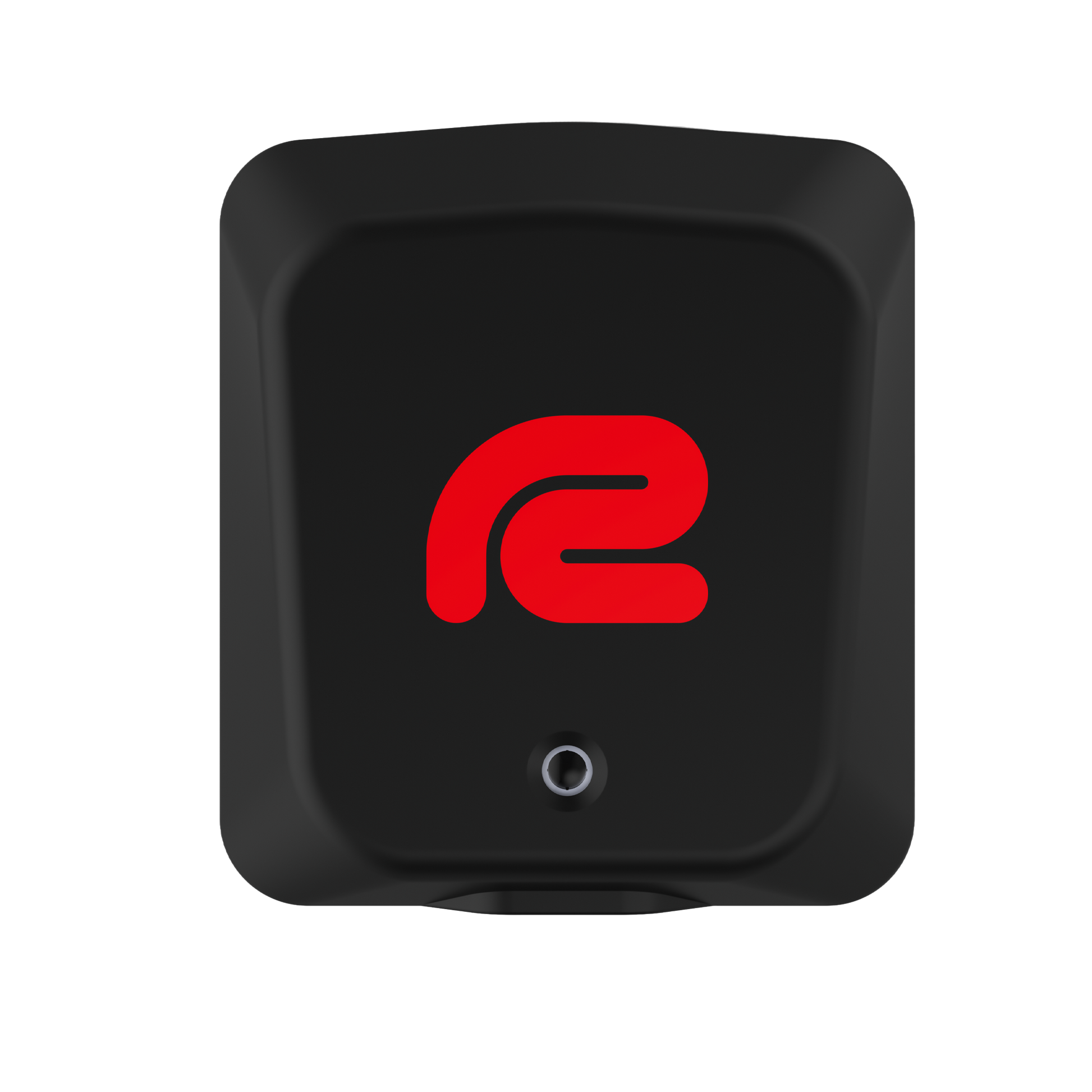

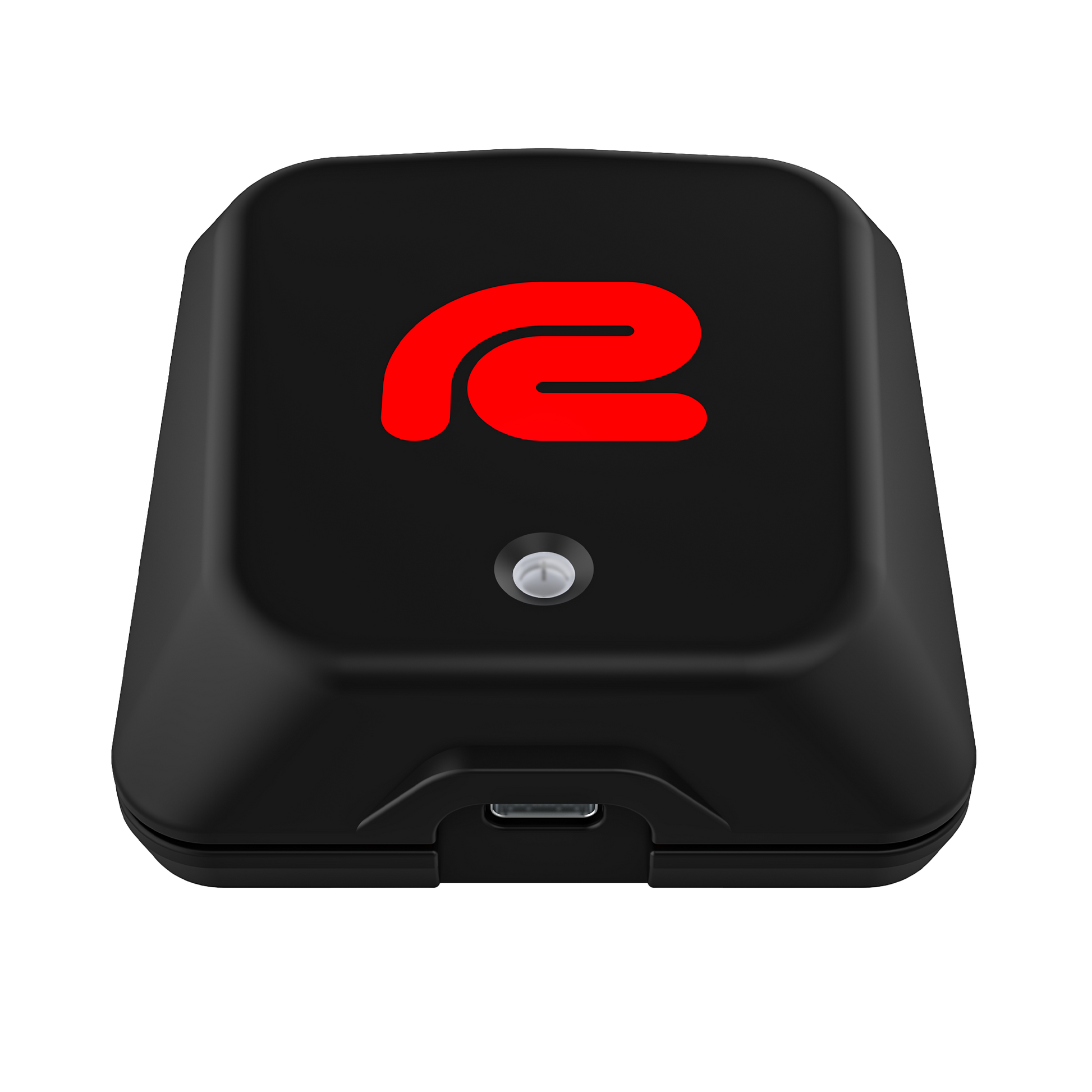

The RaceBox Mini S is a state-of-the-art GPS recording device. It features a 25Hz GPS Module that simultaneously tracks GPS, GLONASS, Galileo, and Beidou. Its high-definition GPS supports all of the best app features LITPro offers. You'll also get fast sync times, jump detection, and it's compatible with iOS and Android. The Mini S is also shock and splash-resistant, making it robust for use in motocross and MTB environments.
Note: Mini S's purchased directly from LITPro are optimized for motocross. The internal mounting magnets (unnecessary for MX) are removed to save weight and we also include two extra velcro mounting kits. These magnets are not removed if you purchase your device from another vendor.
This precision GPS device was the winner of our 2023 GPS Device Shootout. In this blog series, we selected 10 popular consumer GPS devices and compared them in head to head tests.
High-Precision GNSS (GPS) - 25Hz
Simultaneous tracking of GPS, Glonass, Galileo, Beidou
Compatible with iOS and Android Smartphones
Bluetooth 5.2
Splash Resistant
Safe to use during rainfall or in wet conditions. Do NOT spray directly with power washer.

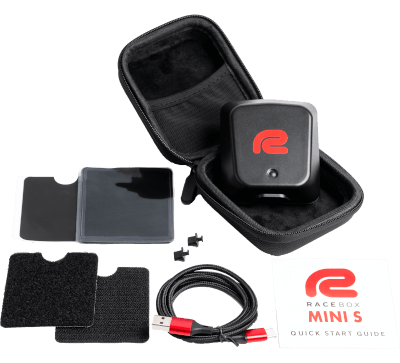

What's included
What's included
- RaceBox Mini S
- Hardshell carry case
- USB-C to USB-A charging cable
- USB-C Water/Dust covers for extra protection

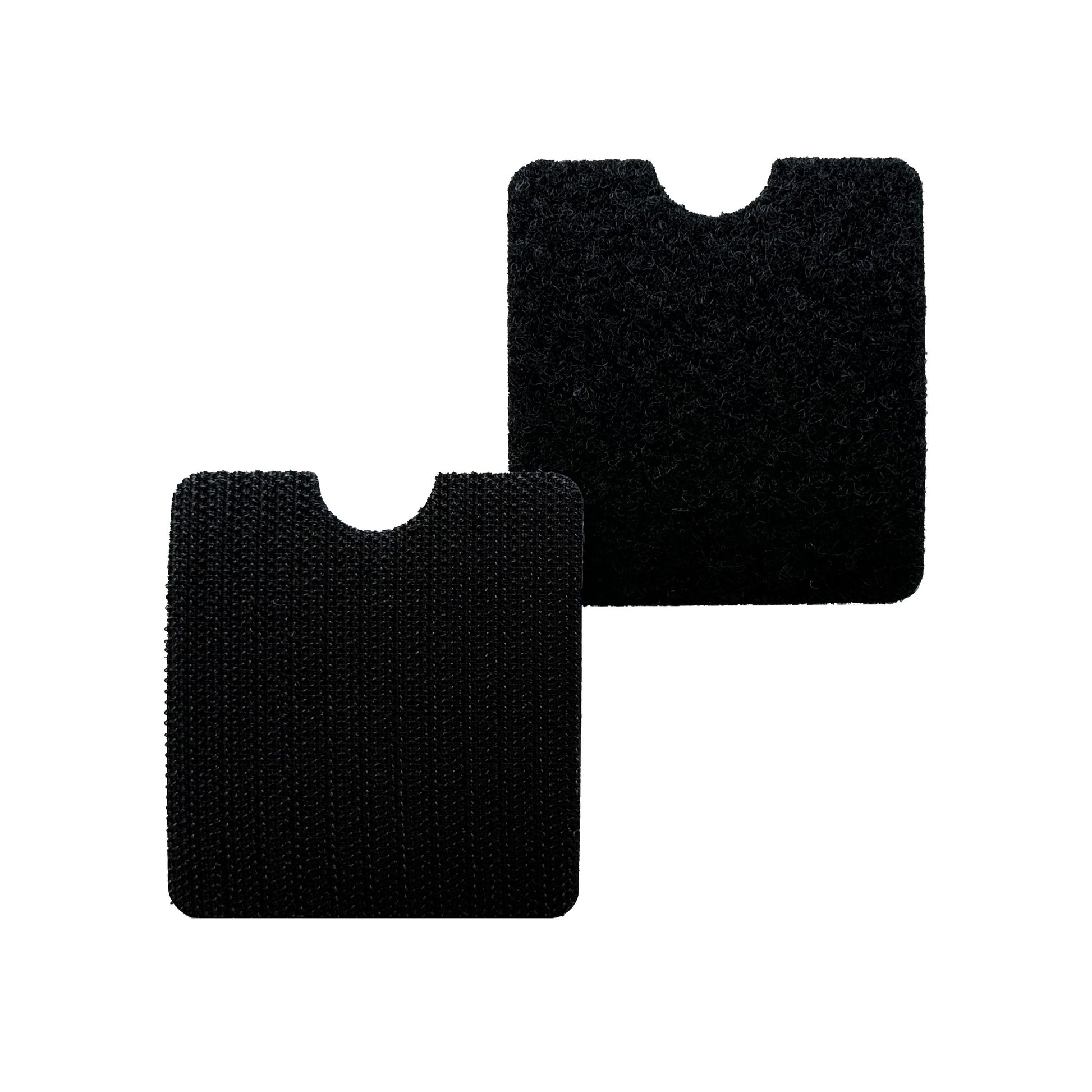

- Hook'n'loop self-adhesive tape (3 Pairs Total)
- Scratch-protect self-adhesive tape
- High-grip temperature-resistant silicone pad
- Quick-start guide and mounting guidance
Technical specs
Technical specs
- Weight: 106 grams (3.7 oz.)
- BLE: 5.2, certified down to 4.2. Up to 20 meters range
- Battery: integrated 1100 mAh LiPo
- Recommended charger: 0.5A USB Type-A. Most modern smartphone chargers should work
- Charging port: USB Type-C
- Charging time: less than 3 hours to 100% charged
- Usage on battery: over 20 hours active, up to one year standby

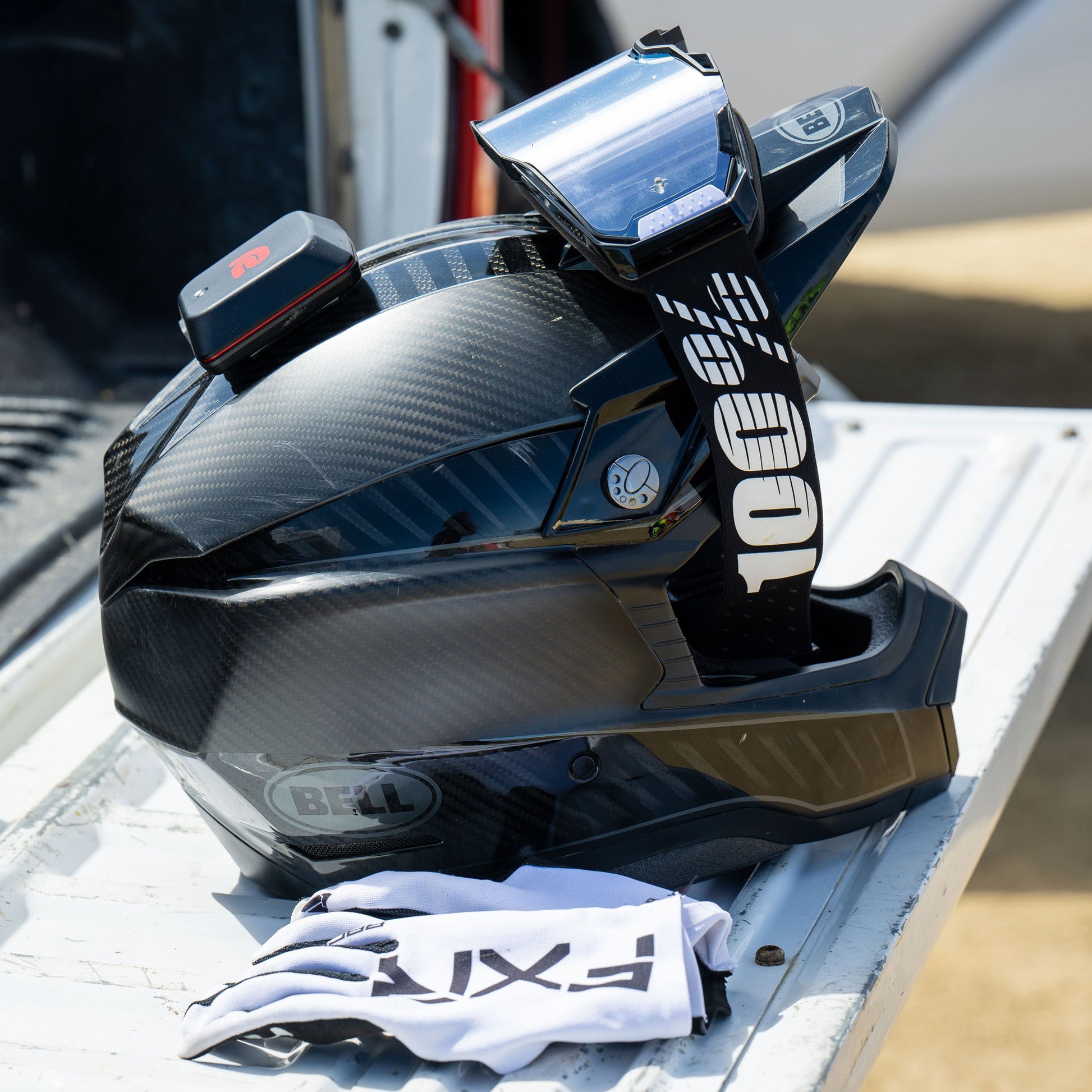

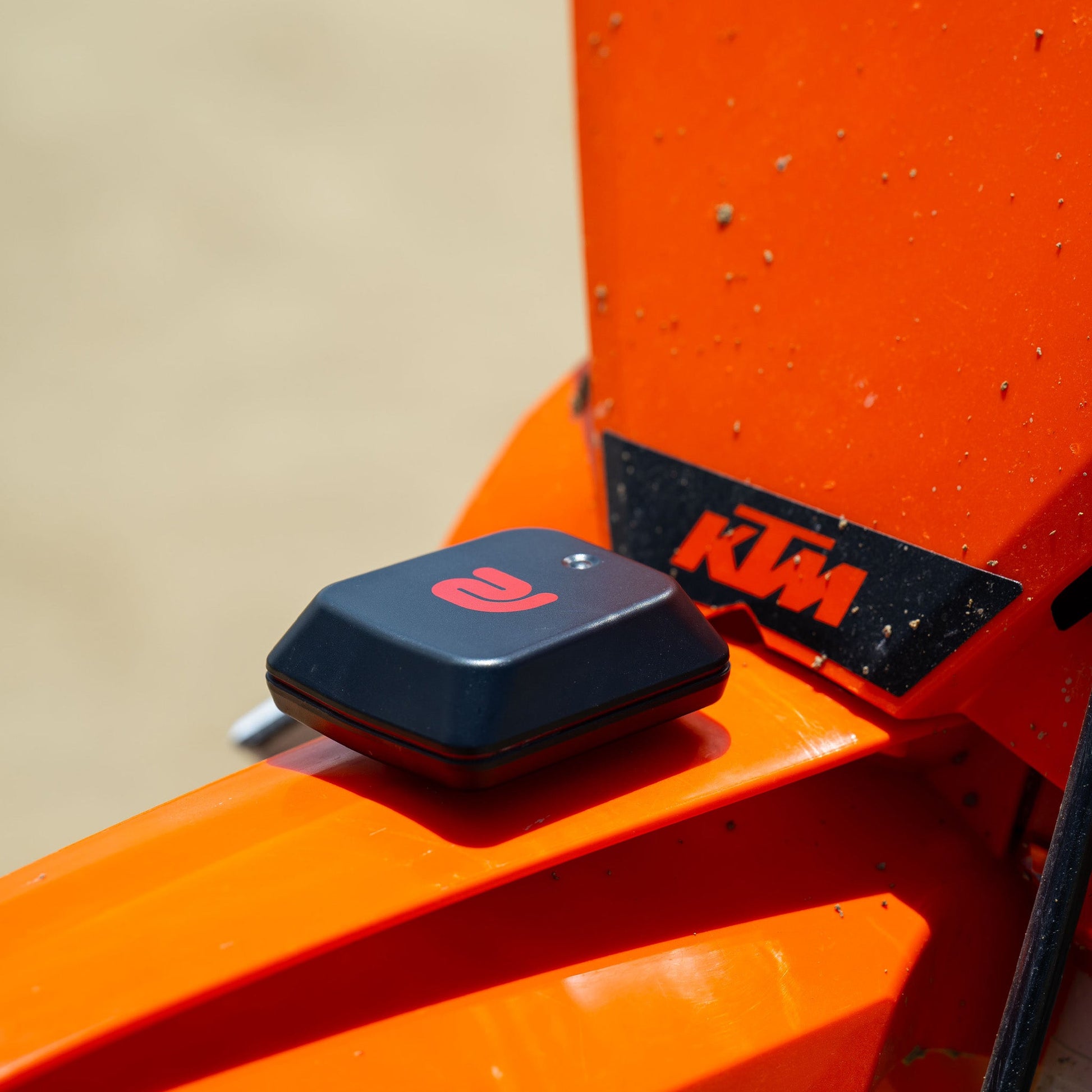

- Mounting compatibility: Includes hook'n'loop (velcro) self-adhesive tape for mounting on helmet, front or rear fender. Also includes 1/4"-20UNC thread.
- GPS receiver: 25Hz GPS, GLONASS, Galileo, BeiDou and SBAS, -167dBm sensitivity with built-in 20dB gain antenna
- Accelerometer: 1kHz internal sampling rate with +/- 8g scale and 0.001g sensitivity
- Gyroscope: 1kHz sampling rate with +/- 320dps scale and 0.02 dps sensitivity
- Environmental compatibility: -20 to 70°C (-4 to 158°F), splash resistant. Package includes optional dust cover for the charging port.
- Storage (Mini S only): 130 min @ 25Hz, 325 min @ 10Hz
Getting Started Guide & Mounting Instructions
See how the Mini S performs against the Micro in our GPS Shootout.
